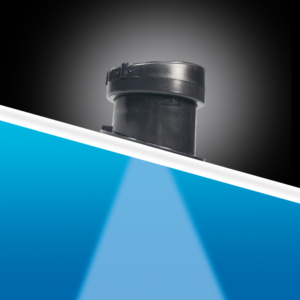

Airmar P79 Traditional/CW In-hull

Airmar P79 Traditional/CW In-hull
  • Depth only
  • 600 W of power
  • Dual-frequency element:
    • 50 kHz with a 45° beamwidth for depth performance to 305 m (1000')
    • 200 kHz with an 12° beamwidth for depth performance to 183 m (600')
  • Depth only
  • 600 W of power
  • Dual-frequency element:
    • 50 kHz with a 45° beamwidth for depth performance to 305 m (1000')
    • 200 kHz with an 12° beamwidth for depth performance to 183 m (600')
  • Adjusts to hull deadrise angles up to 22°
  • Drill-free installation
  • Recommended for planing-hull powerboats, trailered boats, rigid inflatable boats (RIBS), and racing sailboats
  • No hull protrusion
  • Urethane transducer housing with adjustable, plastic, mounting base
  • Power Rating: 600 W
    Max Deadrise: Up to 22°
    Max Vessel LOA: Up to 8 m (26')
    Acoustic Window: Layered plastic urethane
    Common Use: Leisure/Yachting, Fishing
    Conventional Beam: 45°/12°
    Functions: Depth
    Housing: Plastic
    Hull Material: Solid fiberglass only
    Max Deadrise Angle: 22°
    Max Depth: 304 m (1000')
    Mounting Style: In-Hull
    Retractable housing: No
    Single or Dual Frequency: Conventional Dual Frequency
    Tilted Element: No
    Weight: 2.3 kg (5 lb.)
